View In:   ArcGIS Online Map Viewer

Name: Quarter Section Grid Labels

Display Field: SECTION_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

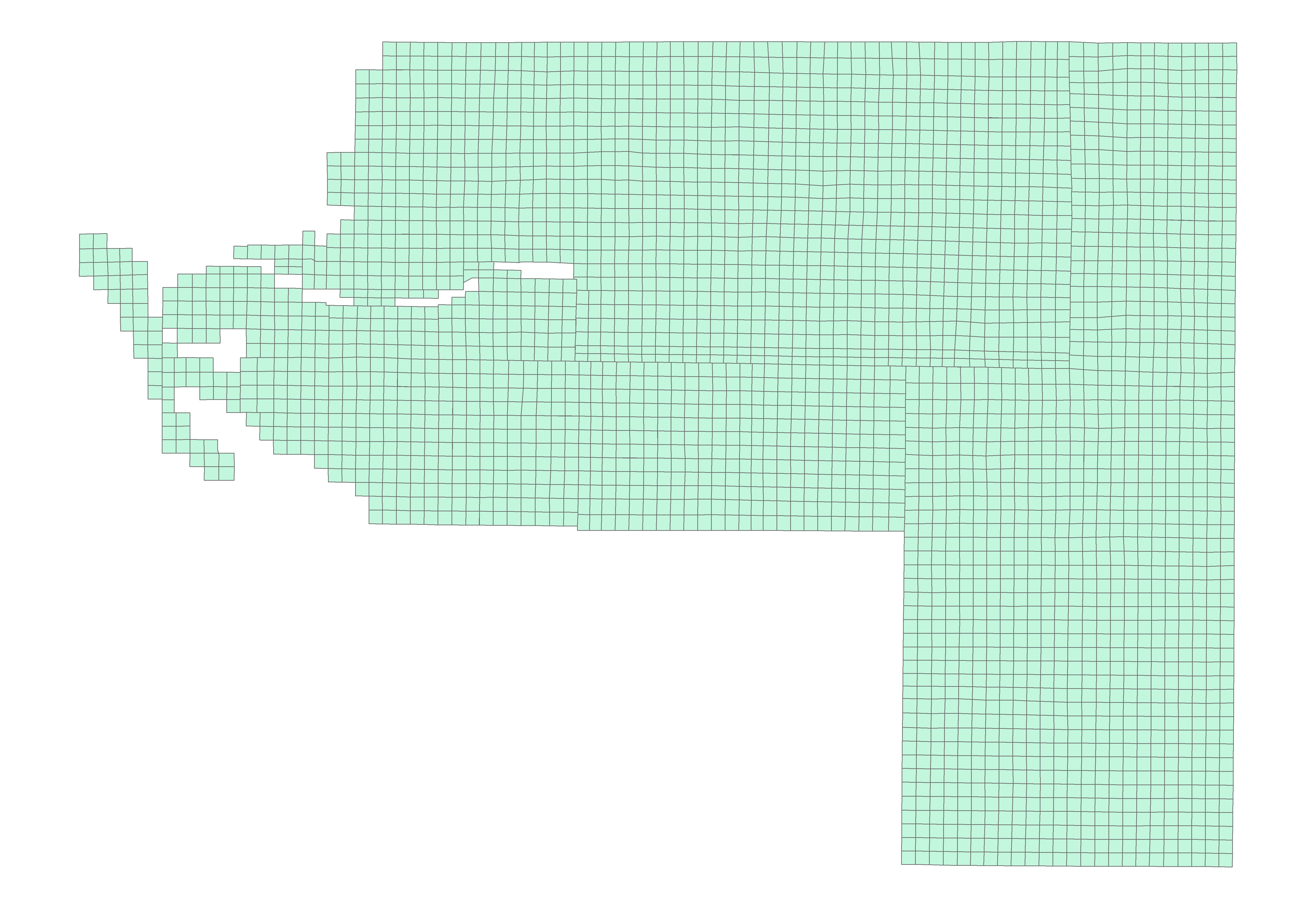

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN>This is a polygon layer that was manually created to divide the sections of Manatee County into quarters using the section layer as a base. The polygons are named with the cardinal direction of the area of the section they are located in, the section number, township number and the range number.</SPAN></P></DIV></DIV>

Service Item Id: 2d98fd3b7bb445dc97f029e1379f5ae3

Copyright Text: SCOX, Utilities Records Division - Mapping, Utilities Department

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 40000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 414741.000902925
YMin: 1044679.76140202
XMax: 638604.613870341
YMax: 1204379.00007377
Spatial Reference: 102659  (2237)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 0]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: true
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• SECTION_NAME ( type: esriFieldTypeString, alias: SECTION_NAME, editable: true, nullable: true, length: 50, defaultValue: null, modelName: SECTION_NAME )
• TOWNSHIP_NAME ( type: esriFieldTypeString, alias: TOWNSHIP_NAME, editable: true, nullable: true, length: 50, defaultValue: null, modelName: TOWNSHIP_NAME )
• RANGE_NAME ( type: esriFieldTypeString, alias: RANGE_NAME, editable: true, nullable: true, length: 50, defaultValue: null, modelName: RANGE_NAME )
• DIRECTION ( type: esriFieldTypeString, alias: DIRECTION, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DIRECTION )
• QUARTER_SECTION_NAME ( type: esriFieldTypeString, alias: QUARTER_SECTION_NAME, editable: true, nullable: true, length: 50, defaultValue: null, modelName: QUARTER_SECTION_NAME )
• Shape__Area ( type: esriFieldTypeDouble, alias: SHAPE.AREA, editable: false, nullable: true, defaultValue: null, modelName: SHAPE.AREA, required: true )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.LEN, editable: false, nullable: true, defaultValue: null, modelName: SHAPE.LEN, required: true )

Templates:

• Name: Quarter Section Grid Labels
  Description:
  Prototype:
  QUARTER_SECTION_NAME: null
  DIRECTION: null
  SECTION_NAME: null
  TOWNSHIP_NAME: null
  RANGE_NAME: null

  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query,Extract

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Append   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
