Name: Structures

Display Field: EDITORNAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

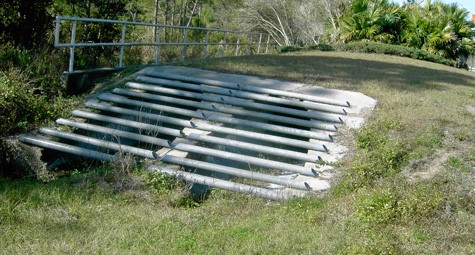

Description: Stormwater Structures are a point feature class that represents the stormwater structures in the County, both publicly and privately maintained. Structures are those features in the stormwater network that are typically placed at the ends of pipes. The most common examples are; MES, FES, Headwall, Spillway, Cleanout, Bubbler, Plug and Weir. This dataset is derived from a variety of sources some of which are: asbuilts/record drawings, field verifications, and planametric data.

Service Item Id: f6a8aaddbe1b4eeb99b70805a7361522

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 100000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -9133735.07566316
YMin: 1060412.8700276
XMax: 637909.9095510921
YMax: 3147835.78703694
Spatial Reference: 102659  (2237)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSSquare
Color: [76, 230, 0, 255]
Size: 8.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• TYPE ( type: esriFieldTypeString, alias: TYPE, length: 2 , Coded Values: [0: MES] , [1: FES] , [2: Head Wall] , ...8 more... )
• OWNERSHIP ( type: esriFieldTypeString, alias: OWNERSHIP, length: 50 , Coded Values: [1: County] , [2: State] , [3: City] , ...3 more... )
• MAINTAINED ( type: esriFieldTypeString, alias: MAINTAINED, length: 50 , Coded Values: [1: County] , [2: State] , [3: City] , ...3 more... )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, length: 50 , Coded Values: [1: Excelent] , [2: Good] , [3: Fair] , ...3 more... )
• SOURCE ( type: esriFieldTypeString, alias: SOURCE, length: 30 , Coded Values: [GPS DATA: GPS DATA] , [SKETCH: SKETCH] , [VALVE DATA SHEET: VALVE DATA SHEET] , ...10 more... )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: ENABLED , Coded Values: [0: False] , [1: True] )
• RECORD_NUM ( type: esriFieldTypeString, alias: Record Number, length: 50 )
• EDITORNAME ( type: esriFieldTypeString, alias: EDITORNAME, length: 100 )
• LASTUPDATE ( type: esriFieldTypeDate, alias: LASTUPDATE, length: 8 )
• INSTALL_DATE ( type: esriFieldTypeDate, alias: INSTALL_DATE, length: 8 )
• ELEV ( type: esriFieldTypeDouble, alias: ELEV )
• DIAMETER_HORIZONTAL ( type: esriFieldTypeDouble, alias: DIAMETER_HORIZONTAL , Coded Values: [0.5: 0.5 Inch] , [0.75: 0.75 Inch] , [1: 1 Inch] , ...86 more... )
• DIAMETER_VERTICAL ( type: esriFieldTypeDouble, alias: DIAMETER_VERTICAL , Coded Values: [0.5: 0.5 Inch] , [0.75: 0.75 Inch] , [1: 1 Inch] , ...86 more... )
• CONFIGURATION ( type: esriFieldTypeDouble, alias: CONFIGURATION )
• REMARKS ( type: esriFieldTypeString, alias: REMARKS, length: 255 )
• GPS ( type: esriFieldTypeString, alias: GPS, length: 10 , Coded Values: [YES: YES] , [NO: NO] , [NULL: NULL] )
• X ( type: esriFieldTypeDouble, alias: X )
• Y ( type: esriFieldTypeDouble, alias: Y )
• FACILITYID ( type: esriFieldTypeString, alias: FACILITYID, length: 30 )
• LEGACYID ( type: esriFieldTypeString, alias: LEGACYID, length: 30 )
• LOCATION ( type: esriFieldTypeString, alias: LOCATION, length: 100 )
• CREATOR ( type: esriFieldTypeString, alias: CREATOR, length: 100 )
• CREATIONDATE ( type: esriFieldTypeDate, alias: CREATION_DATE, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• STATUS ( type: esriFieldTypeString, alias: STATUS, length: 1 , Coded Values: [0: Pending] , [1: Complete] )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
